UCDM 3100 / 3200 / 3300 / 3400 F/R
{gallery}PULOON/UCDM{/gallery}
UCDM 3100/3200/3300/3400 F/R
{tab=Specifications}
|
MODEL |
UCDM 3100 / 3200 / 3300 / 3400 F/R |
|
| Type | Long-edge CDM
Bundle Presenter |
|
| Spec. | Dimension
(WxDxH mm) |
F:280×676.3×284.8/418.8/686.8 R:280×676.3×267.6/401.6/669.6
|
| Denomination | 1 / 2 / 3 / 4 | |
| Speed Range | 7 notes /seg. | |
| Double Detect | Ultra sonido | |
| Access Type | Front / Rear Access | |
| Interface | RS232C / USB2.0 (Option) | |
| Power | DC 24V | |
| Media Size |
Width: 120 – 178 mm Height: 60 – 85 mm Thickness: 0.06-018 mm
|
|
| Pickup/Feeding Type | Friction /Roller to Roller | |
| Cassette Capacity | 3000 notes (355mm) | |
{tab=Outline}

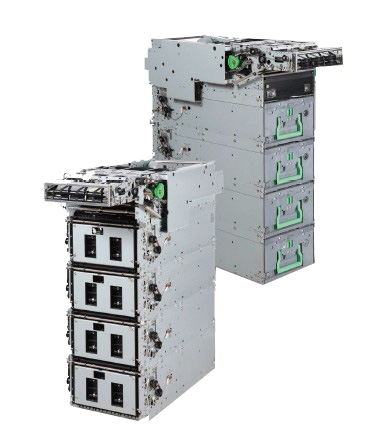

UCDM series products are high performance cash dispensers with presenter that is foten used to ATM machines TVM machines, and exchangers. These products can handle various notes from different countries.
{tab=Features}
- High-Speed dispensing of the worldwide banknotes
- Reliable performances of presenting & retrancting
- Innovate double note detection technology by ultrasonic sensor
{/tabs}
