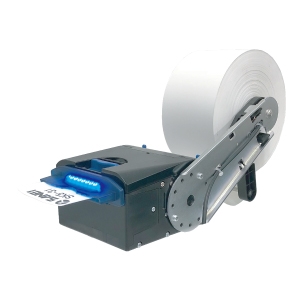

SK5-31
{gallery}Sanei/SK5/P1{/gallery}
SK5-31
{tab=Features}
・Presenter unit incorporated
・Anti paper jam function (patent pending)
・Paper eject assistance function (patent pending)
・250 mm/sec print speed *1
・Max. 150mm large paper roll support
・Ethernet model available
・Multi position paper roll installation support (12 positions)
・Adjustable paper guide (2 – 3 inch)
・Plastic mold case design
{tab=Printer demostration}
{mp4}SK5-31{/mp4}
{tab=Specifications}
| Printing method | Direct line thermal |
| Paper width | 54mm to 82.5mm |
| Print width | Max. 80mm |
| Paper roll diameter | Max.φ150mm |
| Paper thickness |
59 to 150um (52g/m2 to 128g/m2) |
| Paper core diameter | Internal φ25.4mm x External φ31.4mm or more |
| Number of dots | Max. 640dot |
| Resolution | 8 dots/mm (203dpi) |
| Printing speed | 250 mm/sec. (max.) |
| Paper Sensors | Near end Sensor/ Paper end Sensor/ BM (Black mark) Sensor Presenter Sensor |
| Paper near-end | φ35.0mm±2.5mm |
| Cutter | Full cut |
| Interface | SK5-31S : Serial (Max 115.2kbps), USB2.0 SK5-31W : USB2.0, LAN (10Base-T/100Base-T) |
| Character type |
ASCⅡ: Katakana, PC437/850/852/857/858/863/865/866/860/862/864/737, WPC1252/1252_2/1254/1250/1251/PC1253 Download: Available |
| Font / Dots / Lines |
Printing width: 54/56/72/80mm ASCⅡ 16 dots: 8 x 16 dots (WxH), 54/56/72/80 lines ASCⅡ 24 dots: 12 x 24 dots (WxH), 36/37/48/53 lines |
| Memory | Input buffer 32k bytes User memory, Non-volatile memory |
| Logo registration | Download bit image |
| Barcode |
1D: UPC-A/E, JAN13/8, CODE39, ITF, CODABAR, CODE128, 2D : QR、MicroQR、MaxiCode、MicroPDF417、PDF417、DataMatrix |
| Regulation | VCCI, FCC, CE CLASS A |
| Printing life | Pulse activation 200million pulses or more Abrasion resistance 150Km or more |
| Cutter life | Cutting life 2 million cuts or more (Thickness 75um (60 g/m2) or less) |
| Power supply | DC Power supply DC 24V±5% / TYP 2.7A |
| Current consumption |
Standby: 80mA or less *Under normal temperature with 100% print ratio. Depending on the print content (duty), a large peak current will be |
| Operating environment | Temperature: -20 ˚C to +70 ˚C Humidity: 20%RH to 85%RH (No condensation) Printing quality is guaranteed from +5 ˚C to +40 ˚C |
| Storage environment | Temperature: -30 ˚C to +70 ˚C Humidity: 10 %RH to 90 %RH (No condensation) |
| Dimensions (W×D×H) | Printer Unit only : 116 x 119.5 x 76.1mm Include LED Bezel : 116 x 143.5 x 76.1mm |
| Weight | Approx 910g (Without paper roll, LED Bezel, Paper Holder） |
| Features | Presenter unit incorporated Several paper holder position available (12 patterns) Plastic mold case design Ethernet model available Anti-Paper Jam function |
