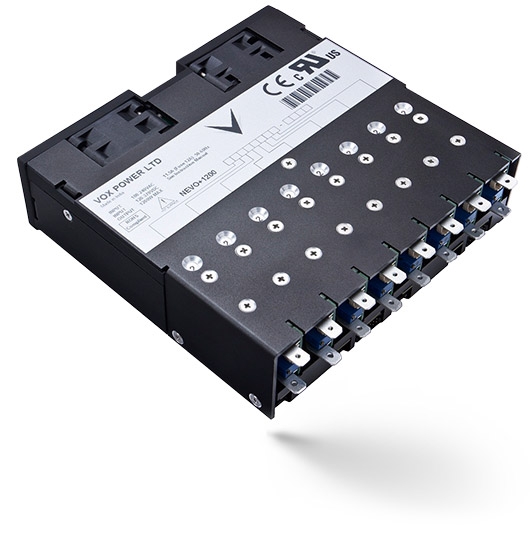

NEVO+1200S
The NEVO+1200S configurable power supply is the smallest in its class, delivering up to 1200W from a 6”x 6” x 1.61” package weighing only 1.2kg when fully configured and is the ultimate power solution for demanding industrial applications where size, weight, low standby power and primary side inhibit are vital factors.
NEVO+1200S
- Up to 1200 Watts of output power
- Primary side remote on/off function
- Standby power ≤ 3 Watts
- 6″ x 6″ x 1.61” footprint
- Low noise fan option
- UL60950 2nd edition approved
- Industry leading power density (21W/in³)
- Lightest modular design – only 1.2kg – 1000Watts/kg
- Efficiency up to 89%
- Remote current / voltage programming
- Accurate current sharing
- Parallel and series connection of modules
- 2 x 5V 1A bias supply
- Field configurable
- RoHS compliant
- 2 year warranty
- Approved to latest standards:
Industrial (IEC/UL60950 2ND Edition),
Medical (IEC/UL60601-1-2 3RD Edition),
EMC (IEC/UL60601-1-2 4TH Edition)
| AC input voltage | 85 – 264 Vrms |
| Size | 6 x 6 x 1.61 Inches |
| Power rating | 1200 Watts |
| Efficiency | Up to 89% |
| Power factor | 0.99 |
| Holdup | 20mS |
| Ambient operating temperature | -20°C To 70°C (Derating above 50°C) |
| Input leakage current | < 1500uA |
| Output options | |
| OP1 | 1.5V-7.5V,25A, 125W |
| OP2 | 4.5V-15V, 15A, 150W |
| OP3 | 9V-30V, 7.5A, 150W |
| OP4 | 18V-58V, 3.75A, 150W |
| OP5 | Dual 3.3V-15V, 5A, 2 x 75W |
| OP8 | Dual 24V, 3.125A, 2 X 75W |
Documents, specifications, features, accesories
DOC-MN-002-02-NEVO1200_Series_Installation_Manual_1.pdf
DOC-DTS-003-02_NEVO1200S_Industrial_Datasheet_1.pdf
DOC-MN-006-03-NEVO1200_User_Manual_1.pdf
