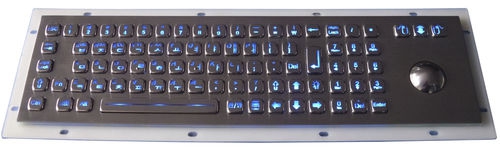

K-TEK-A392-TB-KP

 Keyboard-Trackball-Keypad

DIMENSIONES: 392.0mm x 110.0mm (panel frontal)

• Imposing stainless steel design, specially designed keyboards meet the highest demands with regard to design, functionality,
• Longevity and high protection level.
• Stainless steel fascia and key-tops guard willful destruction, vandal-proof, against corrosion, weather-proof especially under
• Extreme climatic conditions, water proof/dirt proof, operation under hostile environments.
• Waterproof execution according to IP65 protection from top panel, rear aluminium plate with mounting holes easily & tightly
• Mounting to enclosure or panel.
• An excellent tactile feel with full-long travel switches and allow users to achieve fast and accurate data input without any noise
• With firm tactile perception for comfortable operation
• Internet friendly key layout, key-tops are laser-etched in legends and characters for easy readability, long life to prevent lettering
• Metal keys are protected against twisting and levering which can not be dislodged from front, or defaced removing key covers.
• Ease of customizing with multiple languages, to accommodate foreign or custom variants.
• Complete electronic modules including controller in close consultation with our customers are available.
• PS/2, USB connection plug and play with PC via PC existing OS driver, no needing of install separate driver.
• The numeric keypad between keyboard and trackball is available with encryption module supporting DES/TDES for bank usage of CDM/ATM.

 MECHANICAL DATA:

• Actuator/keys: 84 keys, super quality SUS304 brushed stainless steel
• Key top style: Protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available
• Key Size: 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 100.0mm for space bar.
• Key travel: 2.0mm
• Actuation Force: 0.6 N+/-0.1N for key 14.0mm x 14.0mm (pressure point ), 1.2 N+/-0.1N for key 14.0mm x 28.0mm (pressure point)
• Switch life: more than 10 million of operations.
• Front Plate: 1.5mm thickness super quality brushed stainless steel
• Back Plate：3.0mm thickness brushed and oxidized aluminium
• Tracker ball: 38.1mm (1.5’) diameter, IP65 static 400DPI mechanical trackball, IP68 dynamic washable 800DPI optical trackball,
• IP65 dynamic 1200DPI laser trackball are all available.
• G.W.: 2.00KGs
• Dimensions: 392.0mm x 110.0mm (front panel) , 416.0mm x 134.0mm (back panel)

ELECTRICAL DATA:

• Supply Voltage: +5V DC +/-5%
• Current Rating: appr. 30mA
• EMC Standard: It is compliance with the council IEC 61000-4-2:2008；IEC 61000-4-3:2006+AI:2007+A2:2010；IEC 61000-4-4:2004
• EMI: EN 55022: 2010
• EMS: EN 55024:2010
• Lifespan > 5 years
• Switch Contact Material: Carbon-on-Gold key switch technology PCB.
• Interface: PS2, USB available, RS232 for EPP
• If needed, numeric keypad is available to be with encryption electronics controller supporting DES/Triple DES.
• OS: All windows, Linux, Unix, Mac OSX

ENVIRONMENTAL ADAPTABILITY:

• Operating temperature:-20oC to +60oC
• Storage temperature: -30oC to +70oC
• Operating RH: 30-90%
• Atmospheric pressure: 60-106Kpa.
• Saline mist: 96 hours, IEC 60512-6
• Damp heat test at + 40oC: 21 days, IEC 60512-6
• Dry heat test at + 85oC: 10 days, IEC 60512-6

RELIABILITY:

• RoHS Compliant, CE and FCC, ESD
• Protection Level: IP65(front panel)
• Vandal resistant IK09
• Key Lifespan >10 million actuations
• MTBF >50000H
• MTTR <30min
