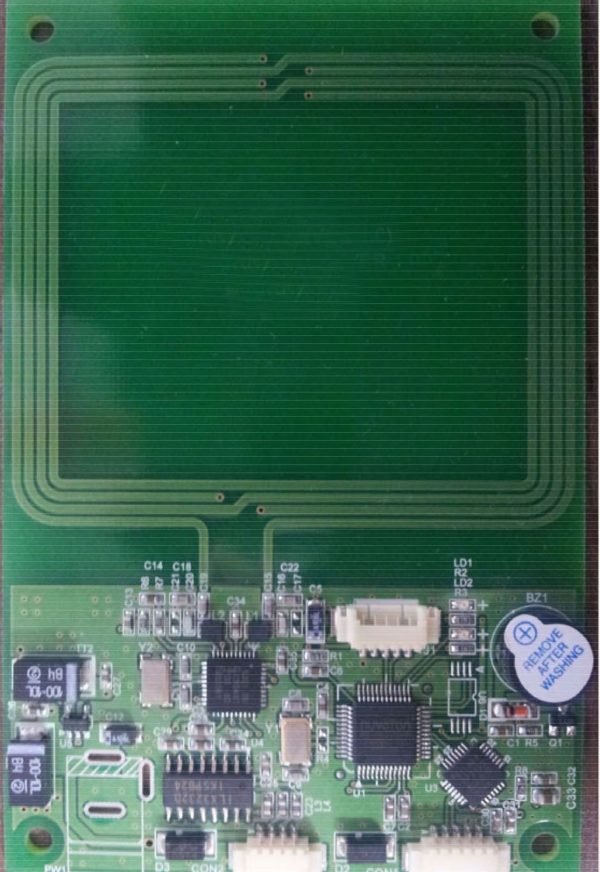

AKNFC-1000
AKNFC-1000 is designed to meet the demands of Auto-ID, E-payment, Hospitality, etc. complying with the latest NFC technology standard cards such as Mifare, ISO-14443 Type A/B, Desfire, Felica, NFC p2P, etc. Also, it is designed to meet the requirement of contactless credit cards such as VISA, VISAWAVE & Master Card, Paypass payment applications.
AKNFC-1000
NFC-Module
- Full speed USB 2.0 interface & RS-232C option
- Operating Frequency: 13.56MHz
- Operating Distance: up to 100mm (depends on antenna size of tag)
- MCU: Cortex M0 50MHz, 16KBytes data memory, 128KBytes Program memory
- Tag Operation Speed: 106kbps, 212kbps, 424kbps
- Input Voltage: DC 5V, 200mA(max)
- Operating Temperature: -10 ~ 60 °C
- Dimension : 65 x 100 (mm)
- Available with all ACT KDE motorized card reader/writer
- NFC Module + Housing version is also available
- Comply with Mifare Classic, DESFire, Mifare UltraLight, UltraLight C, Ntag 203, ISO 14443 A & B type card, Topaz, Jewel Card, Felica Card
- P2P mode : ISO/IEC 18092 mode, NFC Target Mode, NFC Initiator Mod
